Sample result

One real job, start to finish.

This is what you get back. A real tender set from a museum fitout: the quote, the counted plan, the questions, the symbol key and the parts list - exactly as the robot produced them.

Real drawing, real robot output. These counts have not been checked by a person yet - that's your job in the review step. Logos, names and the title block are cropped out.

Step 01 · The quote

Upload the set. See the price first.

We read every page, sort out which ones are plans to count, and quote you before anything is counted.

Pages in the PDF32

Plan sheets to countlighting, power & comms, site, lightning protection26

Read freecover, legend, single line diagram, 2 schematics, 1 duplicate6

Price per sheetA$15

Your quote

$390 AUD inc. GST

26 sheets × $15. Pay only if you're happy with it.

From here we follow one of those sheets: E301, the lower ground floor power & comms layout.

Step 02 · The counted sheet

Every fitting boxed on the plan.

Each yellow box is one thing the robot counted. Red boxes are ones its own self-check thinks it missed - flagged, not counted, never quietly guessed.

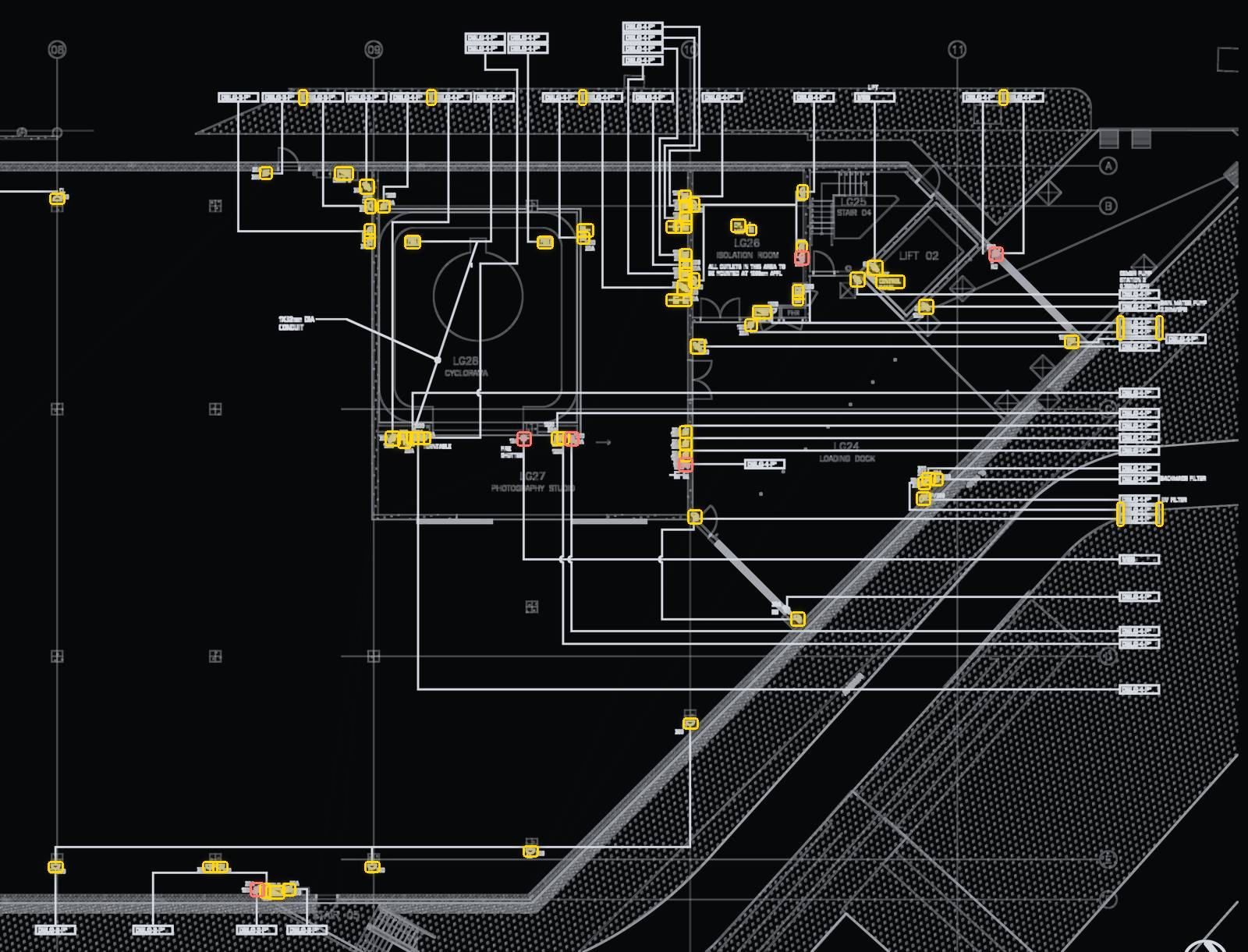

Sheet E301, power and comms layout, with 71 counted fittings boxed in yellow and 6 flagged items boxed in red — 71 counted6 flagged to checkE301 · Power & comms · tap to open full size

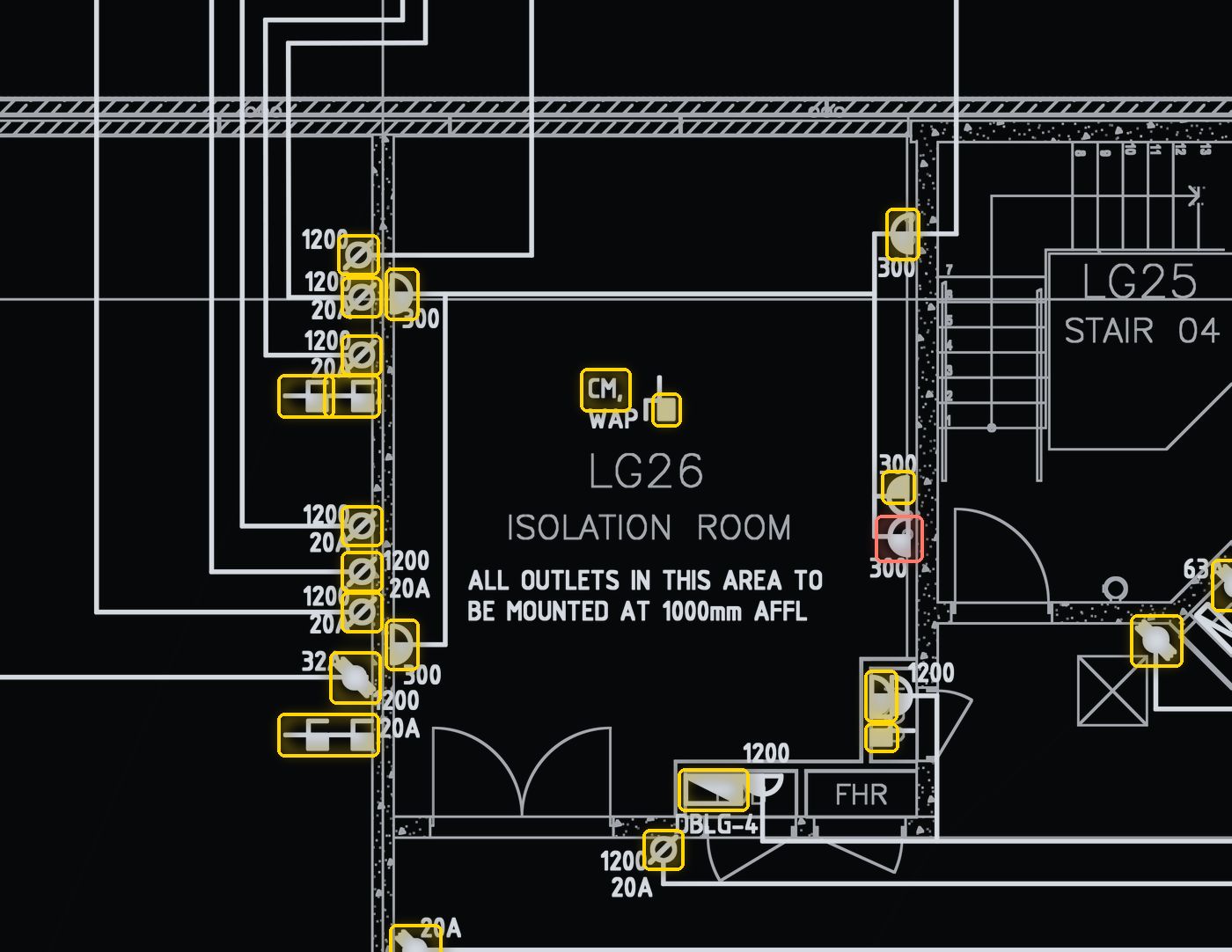

Close-up of the isolation room on E301: power outlets, double GPOs, data outlets and a wireless access point, each boxed in yellow — 23 counted in this patch1 flaggedZoomed in · isolation room

71fittings counted on this one sheet

10different parts, each matched to the legend

6flagged for you to look at - shown as questions

Step 03 · The questions

Not sure? It asks. You tap.

Anything the robot isn't sure of becomes one quick question, with the choices taken straight off the consultant's legend. Try it - this one is real.

0 of 6 answered

Close-up of the flagged symbol on the plan, boxed in red

Possibly missed · not counted

Three phase permanent connection?

E301, photography studio. The self-check saw this symbol with no box on it. What is it?

Got it. In a real job your answer goes onto every box of this symbol and the totals update.

The choices are the consultant's own legend symbols, cut straight from the legend sheet.
One answer covers every box of that symbol - you don't click 22 times.
Skip anything you'd rather check on the plan. Nothing is guessed for you.
On this sheet there are 6 of these to tick off. Answer them, then download.

Step 04 · The symbol key

Every icon, next to its legend name.

So you can see at a glance what the robot took each symbol to be. Icons are cut from the plan itself.

Single phase IP56 power outlet, 20A22 on E301

Double 10A GPO14 on E301

LED wall washer, track mounted [D1.1]8 on E301 · needs a check

Three phase permanent connection7 on E301

Dual-gang RJ45 communications outlet7 on E301 · needs a check

Single 10A GPO6 on E301

Distribution board3 on E301

Floor box [FB3]2 on E301

Wireless access point1 on E301 · needs a check

Control panel1 on E301 · needs a check

Step 05 · The parts list

Totals you can price from.

Every line says how it was found and whether it still needs a look. Download it as Excel when you're done.

Qty	Part (legend name)	Status
22	Single phase IP56 power outlet, 20AEssential / non-essential / UPS are drawn alike - set by circuit	Counted
14	Double 10A GPOEssential / non-essential / UPS are drawn alike - set by circuit	Counted
8	LED wall washer, track mounted [D1.1]	Needs a check
7	Three phase permanent connection c/w full current isolator	Counted
7	Dual-gang 8P8C (RJ45) communications outlet	Needs a check
6	Single 10A GPOEssential / non-essential / UPS are drawn alike - set by circuit	Counted
3	Distribution board	Counted
2	Floor box containing ECD FBIP4SQF [FB3]Found by its printed tag FB3	Counted
1	Wireless access pointFound by its printed tag CM WAP	Needs a check
1	Control panelFound by its printed tag	Needs a check
4	Possibly missed: three phase permanent connection	Flagged - not counted
1	Possibly missed: double 10A GPO	Flagged - not counted
1	Possibly missed: single phase permanent connection	Flagged - not counted
71	counted on E301 · 6 more flagged for you to check

Download Excel

The sample parts list for this sheet. On a real job it covers every sheet, with counts per sheet. Runs like conduit and cable tray aren't on it - take those off as usual.

Try it on your drawings.

Upload the PDF and see your price before you pay. Can't count it? You're not charged.

Get my quote
